Smartware Technologies

WorkPlace Pro Utilities (I/A SMART)

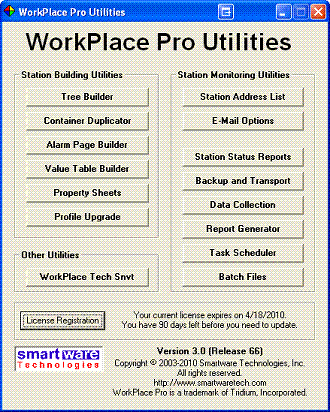

WorkPlace Pro Utilities is a stand-alone application that works with Niagara R2 stations to provide new and additional functionality during all phases of development and maintenance.

Tree Builder	Used to automate the creation of the JavaScript file required to build navigation trees for front end applications, this utility will import the tree structure from an existing Niagara application (or start from scratch), and then easily move, copy, rename, restructure and relink the nodes to underlying Gx Pages or internet IP addresses.
Container Duplicator	Useful in situations containing containers, logic bundles or Gx Pages that are typical of many systems, this utility duplicates the containers, renaming and relinking them appropriately.
Alarm Page Builder	Used to create a set of master Alarm Pages for a system, this utility compiles the alarm inputs from one or more containers or logic bundles and populates a Gx Page with boolean objects, captions and device headings.
Value Table Builder	Used to automatically build a multi-page table of values, where the rows of the table represent containers and the columns represent composite inputs and outputs from the containers. Property Sheets Used to view and edit a set of property values for a set of objects within a container or station.
Profile Upgrade	Used to upgrade the shadow objects of controllers being replaced with newer profile versions.
Station Status Reports	Used to poll any number of Enterprise Server or UNC stations to confirm and report on their health and status.
Backup and Transport	Used to automate the backing up of stations or files and sending them to a file server, FTP site or e-mail address.
Data Collection	Used to query and copy log data from an Enterprise Server Cloudscape archive database or a station backup file to any local database.
Report Generator	Used to create custom Excel-based reports of collected data. Task Scheduler Used to help schedule automated execution of the other utilities.
Batch Files	Used to create sets of tasks to be run in sequential order for automated execution.
WorkPlace Tech Snvt	Used with WorkPlace Tech 4.0 drawings to generate LNC Data Strings and tables of Snvt information.

Available downloads for Workplace Pro Utilities (I/A SMART)
Setup and Installation
WorkPlace Pro Utilities Setup_v3.0.63.msi	WorkPlace Pro Utilities / I/A SMART Setup File (Version 3.0.63)	03/27/2009	7.87 MB
User Documentation
Workplace Pro Utilities ‑ Users Guide.pdf	Workplace Pro Utilities User's Guide	04/25/2006	2.64 MB
IA Series SMART ‑ Users Guide.pdf	I/A SMART User's Guide	04/25/2006	964 KB
WPU ‑ Profile Upgrade and Snvt Generator.ppt	Powerpoint: Profile Upgrade and Snvt Utilities	05/24/2004	14.31 MB
WPU ‑ Faster Navigation Trees.pdf	How to use our updated version of the DemoR2 tree.js to handle larger Navigation Trees without the delay in loading the page	10/22/2003	145 KB
WPU ‑ Station Building Utilities.ppt	Powerpoint: Station Building Utilities	04/07/2003	944 KB
Video Training
WPU Video 1 ‑ Value Tables.zip	Value Table Builder Utility	10/23/2003	5.92 MB
WPU Video 2 ‑ Container Duplicator.zip	Container Duplicator Utility	10/23/2003	14.26 MB
WPU Video 3 ‑ Alarm Page Builder.zip	Alarm Page Builder Utility	10/23/2003	12.58 MB
WPU Video 4 ‑ Property Sheets Utility.zip	Property Sheets Utility	03/25/2004	7.50 MB
WPU Video 5 ‑ Profile Upgrade and Snvt Generator.zip	Profile Upgrade and Snvt Generator Utilities	05/24/2004	5.16 MB
WPU Video 6 ‑ Station Monitoring (Overview).zip	Overview of Station Monitoring Utilities	09/24/2004	13.86 MB
WPU Video 7 ‑ Station Status Reports and Backups.zip	Station Status Reports and Backup and Transport Utilities	10/12/2004	10.42 MB
WPU Video 8 ‑ Data Collection Utility.zip	Data Collection Utility	10/27/2004	10.33 MB
WPU Video 9 ‑ Report Generator Utility.zip	Report Generator Utility	11/03/2004	14.11 MB
WPU Video 10 ‑ Sales and Marketing.zip	Sales-oriented discussion of how to market, promote and write specifications for I/A Series SMART	02/25/2005	0 Bytes
SMART ‑ How to Sell the Features.ppt	Powerpoint Presentation to accompany Video #10	02/25/2005	1.27 MB
Specifications
IA Series SMART ‑ Spec Sheet (rev 5‑09).pdf	I/A SMART Spec Sheet (rev 5-09)	05/21/2009	28.7 KB
Invensys 04‑39 (SMART 2.0).pdf	Invenys Announcement 04-39	09/20/2004	141 KB
Support Files
MDAC_TYP.EXE	Microsoft MDAC 2.8 Drivers (install if you receive an error message regarding MDAC when using the Data Collection or Report Generator Utilities)	09/03/2004	5.30 MB
Beta Versions (Use with Caution)
WorkPlace Pro Utilities Setup_v3.1.75.msi	WorkPlace Pro Utilities / I/A SMART Setup File (Version 3.1.75)	10/17/2011	9.06 MB
WorkPlace Pro Utilities Setup_v3.1.72.msi	WorkPlace Pro Utilities / I/A SMART Setup File (Version 3.1.72)	03/16/2011	8.73 MB
