Network 8000 Conversion Service

The Network 8000 Conversion Service is a powerful system that can analyze the controller logic in a GCM and the Monitor Screens in a Signal system and recreate the graphics and control logic into one or more Niagara R2 UNC and Enterprise Server stations.

The system really does two interrelated conversions:

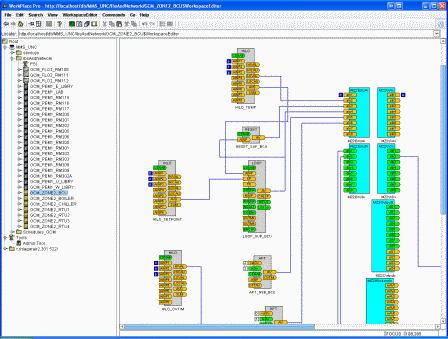

  • It takes the device and logic block information from a GCM and reproduces it in a UNC station.

  • It takes the Monitor Screens from a Signal system and creates the background GIF file and GxPage in an Enterprise Server or UNC station.
A conversion project can include one or more GCMs and a Signal system, in which case the conversion process also links the points on the generated screens into the control logic in the generated UNC station. The Conversion System can also work on a GCM or Signal system without the other.
Available downloads for Network 8000 Conversion Service
Setup and Installation
Smartware NW8000 Comm Utility Setup_v1.2.20.msiSmartware Network 8000 Communications Setup File (v 1.2.20) for backing up GCM/LNC devices for converting (Windows 7 Compatible)01/09/20126.51 MB
Smartware NW8000 Comm Utility Setup_v1.0.19.msiSmartware Network 8000 Communications Setup File (v 1.0.19) for backing up GCM/LNC devices for converting08/05/20094.11 MB
User Documentation
Smartware Network 8000 Communication Utility.pdfSmartware Network 8000 Communications Utility - User's Guide12/07/2010142 KB
Smartware Network 8000 Conversion Service.pdfAll the information you need to convert your Network 8000 Systems to Niagara R2 Stations01/18/201092 KB
